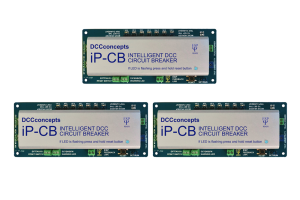

Intelligent DCC Circuit Breaker

Price: £66.63Tax Free

Perfect for all brands of DCC systems, including low-powered starter systems such as Hornby, NCE and Prodigy systems. The DCCconcepts Intelligent DCC Circuit Breaker (iP-CB) works “out of the box” to protect your layout and DCC system against damage caused by overloads and short circuits.

Simple-set jumpers for current limit selection between 1.25A and 5A.
Easy screw terminal connections for track power input and output, trip warning LED, manual reset switch and ESP connections – no solder pads!
ESP connection allows for installation of wireless remote panel indicator
Simple-Set screw adjuster for trip sensitivity so that you can allow for stay-alive charging on your locos
Protective aluminium casing above and insulating pad below for safety

In most cases, simply take the Intelligent DCC Circuit Breaker out of the packaging, connect to your DCC bus wires and you’re done!

Dimensions
150mm wide
62mm high
25mm deep

Advice
Basic Connection
Using With Two Power Districts
Using With an Accessory Bus
Using With a Programming Track
Direct Factory Reset
Changing CV66
Connections
Changing CV64
Changing CV57
Using With An Auto Reverser
Changing CV63 Factory Reset
Changing An iP-CB CV Setting
Using With ESP LED
Setting The Accessory Address
Using With a Manual Reset Switch & LED
